Product Details

Peripheral Equipment for SUNCUE Drying Center

  • Model：SUNCUE Drying Center
About this product

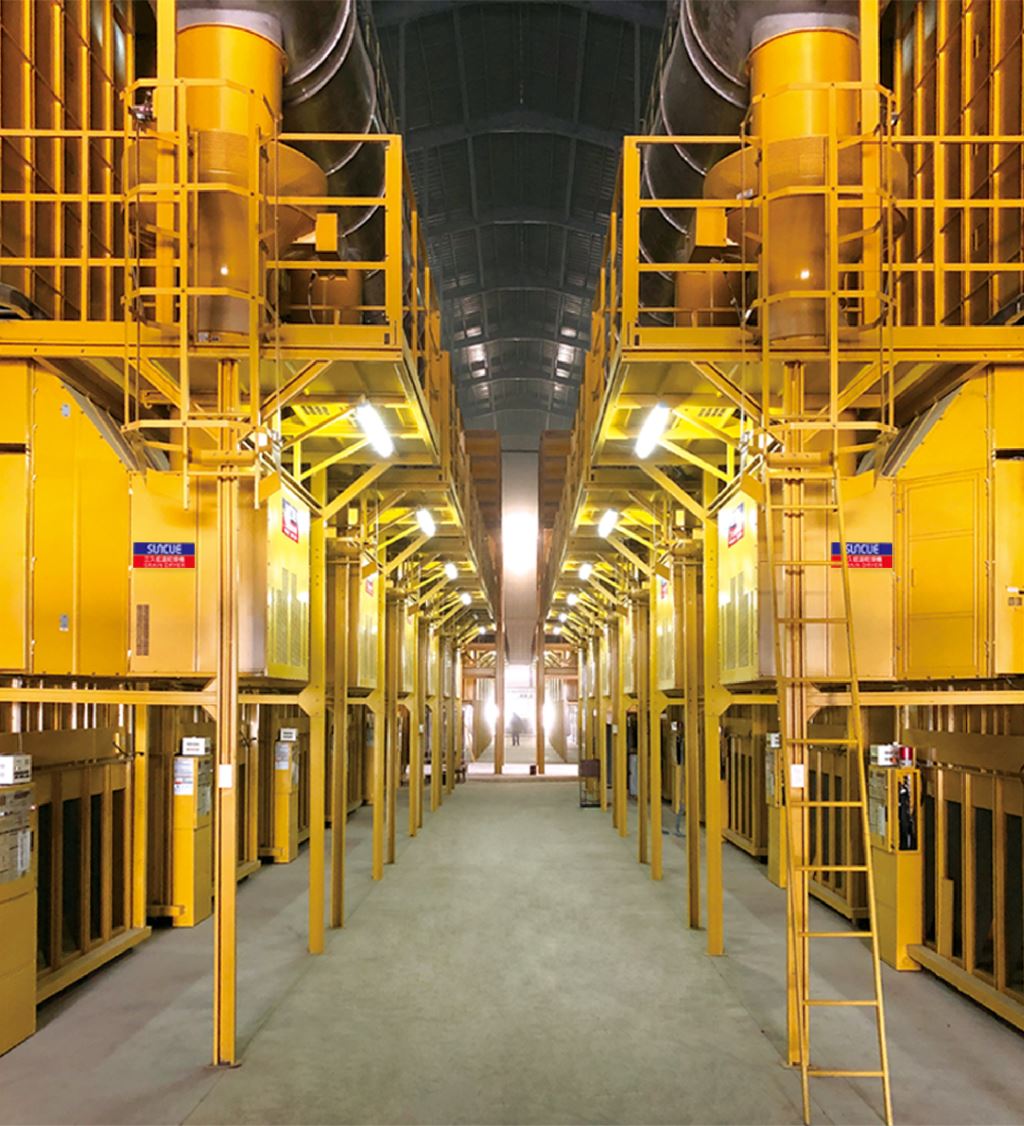

Uses a systematic drying line with peripheral equipment,
the drying facility is safe and efficient, producing high-quality grains.

Post-harvest Equipment
 		Corn sheller
Pre-cleaner
Dust Collecting Equipment


 		Cyclofan, Bag filter
Dust collecting room by gravity
Dust collecting room with water spray
Mud scraper
Grain Transporting Equipment
 		Bucket elevator
Chain conveyor
Quality Control Management Device

 		Moisture reference meter Portable
Single kernel moisture tester
Rice quality scanner

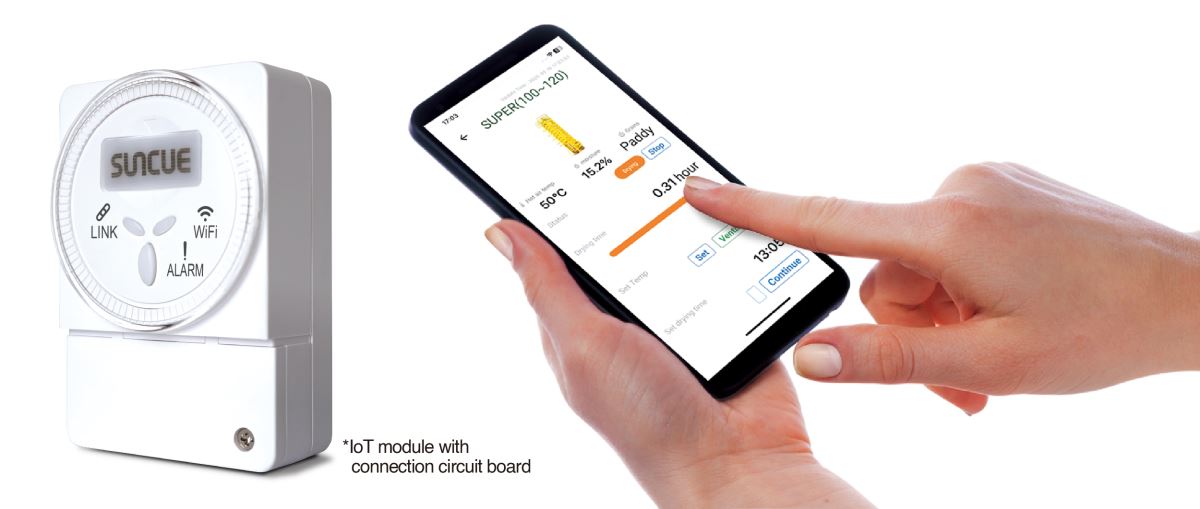

Monitoring SystemSmart-agri monitoring system

    Product Introduction


    Husk-type Peripheral Equipment  Click to Enlarge


    Legend
    1.Metal chain plate conveyor
    		  16.Main control box
    2.Corn sheller  (Click for More Details) 17.Cyclone
    3.Wet paddy loading chute 18.Dust collecting room
    4.Pre-cleaner SPC-50  (Click for More Details) 19.Dust collecting room by gravity
    5.Bucket elevator  (Click for More Details) 20.Dust collecting room with water spray
    6.Wet grain silo 21.Mud scraper
    7.Chain conveyor  (Click for More Details) 22.Husk blower
    8.Ventilating grain dryer 23.Pre husk tank
    9.Circulating grain dryer 24.Husk tank
    10.Cyclofan  (Click for More Details) 25.Husk furnace
    11.Dry grain silo 26.Transfer chamber
    12.Moisture reference meter Portable  (Click for More Details) 27.Bag filter  (Click for More Details)
    13.Single kernel moisture tester (Click for More Details) 28.Exhaust fan
    14.Rice quality scanner (Click for More Details) 29.Ash tank
    15.Smart-Agri monitoring system (Click for More Details)


    2.Corn Sheller   > More info     Back > Legend
    Auto-separate corn kernels and cob, plus aspiration with air blower.

    Dimensions

    Specifications
    ItemSS-135
    Capacity  ton/ hr8~13.5
    ApplicationCorn on cob*
    Dimension  L×W×H mm1,933×1,766×2,548
    Net weight  Approx. kg558 Including motor
    Power consumption  kW7.5
    Electricity3P, 220V/380V/415V/440V, 50/60Hz
    Length of threshing cylinder  mm1197
    Kernel collecting methodHorizontal transport via a screw
    Cob dischargeVia a rotary device
    Feeding methodVia a slat conveyor

    *For seed-specific requirements, please contact the SUNCUE sales department.      ●The customer is responsible for the feed, discharge, and impurity removal conveyors, as well as the collection cylinder after de-husking.
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.




    4.Pre-cleaner   > More info     Back > Legend
    Enhance drying evenness, increase loading capacity and drying efficiency.
    Power and fuel saving, and reduce uneven moisture.

    Process

    Specifications
    ItemSPC-15SPC-50
    Capacity     ton/ hr5~1520~50
    ApplicationPaddy, Wheat, Barley, Corn, Sorghum etc.
    Dimension  L×W×H mm 2,173×1,853×1,7562,918×2,370×3,278
    Net weight  Approx. kg9002,200
    Power consumption kW37.87
    Electricity3P, 220V/380V/415V/440V, 50/60Hz
    FunctionWinnow and Sieve
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
    ●Stand, maintenance platform, inlet hopper, outlet hopper and air pipe are optional.
    ●The handling capacity is based on using Japanese combine harvester.  If impurity rate and moisture content are too high, then the actual handling capacity might be lower than listed.

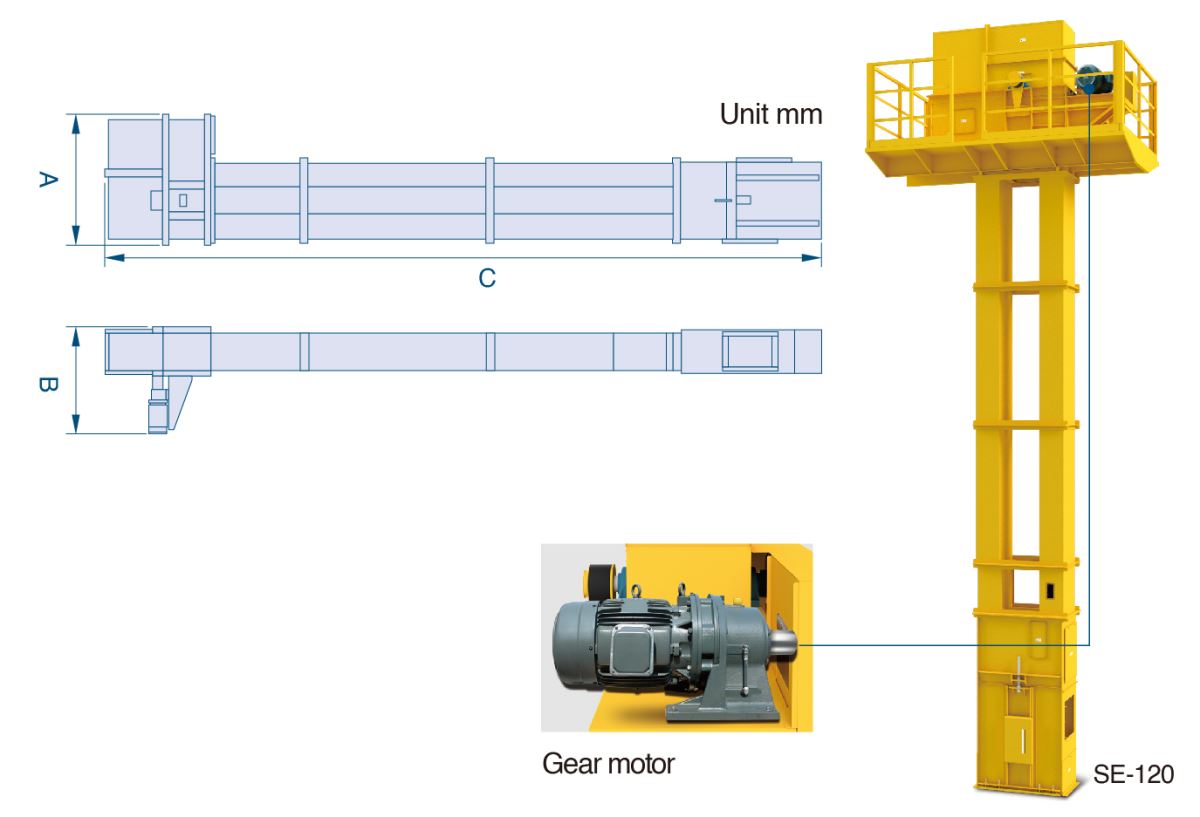

    5.Bucket Elevator   > More info     Back > Legend
    Gear motors of SE-13, SE-25, SE-35, SE-50, and SE-70 function by direct coupling transmission. The gear motor of SE-120 does direct transmission via a chain with anti-reverse device.
    Seed lifting and durable design; assure grain kernels and minimum breakage.
    Avoid skiding, slacking or breaking because of no V-belt. Less malfunction or blockage. Great for heavy-duty.

    Dimensions

    Specifications
    ItemSE-13SE-25
    Capacity Paddy  Approx. ton/hr1325
    Application / Test weightPaddy: >560g/liter, wheat: >680g/liter, corn: >690g/liter and pulses etc.
    Dimension A. Length mm6701,190
    B. Width mm8001,030
    C. Height m4.9 ~ 8.93 ~ 13
    Net weight  Approx. kg250
    *Height=8,956mm    		620
    *Height=13,010mm
    Power consumption kW1.52.2
    Electricity3P, 220V/380V/415V/440V, 50/60Hz

    ItemSE-35SE-50
    Capacity Paddy  Approx. ton/hr3550
    Application / Test weightPaddy: >560g/liter, wheat: >680g/liter, corn: >690g/liter and pulses etc.
    Dimension A. Length mm1,3001,410
    B. Width mm1,0501,3001390
    C. Height m7.4 ~ 15.415.5 ~ 22.47.6 ~ 18.718.8 ~ 26.6
    Net weight  Approx. kg820
    *Height=13,470mm    		1,640
    *Height=21,740mm
    Power consumption kW2.23.73.75.5
    Electricity3P, 220V/380V/415V/440V, 50/60Hz

    ItemSE-70SE-120
    Capacity Paddy  Approx. ton/hr70120
    Application / Test weightPaddy: >560g/liter, wheat: >680g/liter, corn: >690g/liter and pulses etc.
    Dimension  A. Length mm1,7042,960
    B. Width mm1,5651,7161,150
    C. Height m7 ~ 14.814.9 ~ 20.820.9 ~ 26.815 ~ 2121.1~28
    Net weight  Approx. kg1,926
    *Height=14,707mm    		2,890
    *Height=20,013.5mm
    Power consumption kW5.57.5111115
    Electricity3P, 220V/380V/415V/440V, 50/60Hz
    ●Stand, maintenance platform, inlet and discharge hopper and spare pipe are optional.
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
    ●The capacity listed above is based on the: Paddy test weight: 1 liter=560 gram above. Wheat test weight: 1 liter=680 gram above. Corn test weight: 1 liter=690 gram above.



    7.Chain Conveyor   > More info     Back > Legend

    Inlet position and outlet position can be decided according to your needs.
    Hermetic conveyor keeps dust inside. Durable, efficient and low in noise.
    Specially designed for conveying seeds for minimum variety mixing, residual and damage.


    Dimensions


    Specifications
    ItemSFC-30
    Capacity Paddy  Approx. ton/hr30
    Application / Test weightPaddy: >560g/liter, wheat: >680g/liter, corn: >690g/liter and pulses etc.
    DimensionA. Length m<19.920~29.9
    B. Width mm980
    C. Height mm880
    Net weight  Approx. kg1,380
    *Length=19,054mm
    Power consumption kW2.23.7
    Electricity3P, 220V/380V/415V/440V, 50/60Hz

    ItemSFC-50
    Capacity Paddy  Approx. ton/hr50
    Application / Test weightPaddy: >560g/liter, wheat: >680g/liter, corn: >690g/liter and pulses etc.
    DimensionA. Length m<9.910~19.920~29.930~44.945~55
    B. Width mm1,110
    C. Height mm990
    Net weight  Approx. kg2,440
    *Length=20,734mm
    Power consumption kW2.23.75.57.511
    Electricity3P, 220V/380V/415V/440V, 50/60Hz

    ItemSFC-120
    Capacity Paddy  Approx. ton/hr120
    Application / Test weightPaddy: >560g/liter, wheat: >680g/liter, corn: >690g/liter and pulses etc.
    DimensionA. Length m17 ~ 20.921 ~ 30.931 ~ 40.941 ~ 50.951 ~ 61
    B. Width mm1,795
    C. Height mm1,445
    Net weight  Approx. kg5,400
    *Length=21,090mm
    Power consumption kW7.5111518.522
    Electricity3P, 220V/380V/415V/440V, 50/60Hz

    ItemSFC-150
    Capacity Paddy  Approx. ton/hr150
    Application / Test weightPaddy: >560g/liter, wheat: >680g/liter, corn: >690g/liter and pulses etc.
    DimensionA. Length m<1717~25.926~33.934~42.943~51
    B. Width mm1,795
    C. Height mm1,445
    Net weight  Approx. kg5,400
    *Length=21,090mm
    Power consumption kW7.5111518.522
    Electricity3P, 220V/380V/415V/440V, 50/60Hz
    ●Stand, maintenance platform, inlet and discharge hopper and spare pipe are optional.
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
    ●The transmission volume listed above is based on the: Paddy test weight: 1 liter=560 gram above. Wheat test weight: 1 liter=680 gram above. Corn test weight: 1 liter=690 gram above.



    10.Cyclofan   > More info     Back > Legend
    Prevent water pollution and stenchFree the user from water pollution and stench caused by wet dust collecting system.
    Free from shutdown thanks to central processingCentral processing free the user from shutdowns during harvest season.
    Flexible assemblyDust separation will not be affected by the position, either horizontal or vertical installation.
    High efficiency of dust collectionWork properly even under dusty and humid environment.
    Low consumablesNo need for regular replacement of consumables like filter bag.
    Layout optimizationEasily reduce the dust room space.


    Specifications
    ItemCL-10H Horizontal typeCL-10V Vertical type
    Dimension  L×W×H mm2,058×1,380×1,6911,691×1,413×2,630
    Net weight  Approx. kg530560
    Power consumption kW7.5
    Electricity3P, 220V/380V/415V/440V, 50/60Hz

    Applicable model
    SUPER-300+ CL-10×2
    PHS-320
    SUPER-120+ CL-10×1
    PHS-130
    CPR-165
    ●Order optional items like platform, rain hood, exhaust chamber and pipe, stand and balustrade according to dryer and CL-10 models.
    ●Plus: dust room equipment shall be planned together with this model, please contact SUNCUE service for more details.
    ●The user shall prepare dust collecting bags when using CL-10 without a central dust collecting system.
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.

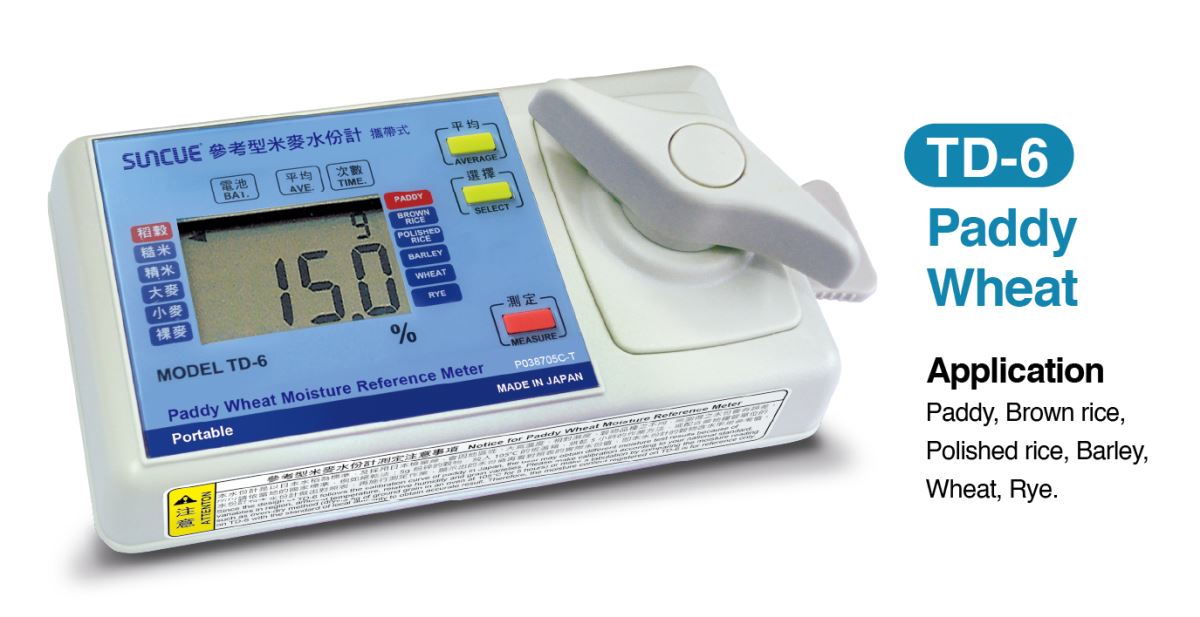

    12.Moisture Reference Meter Portable     Back > Legend

    ItemTD-6
     > More info
    Application & Measuring range
    The test results are for reference.
    Grains with moisture content out of
    the measuring range is not applicable.     		Paddy 8.7 ~ 40.0%Brown rice 9.1 ~ 40.0%Polished rice 9.8 ~ 20.0%
    Barley 8.0 ~ 34.3%Wheat 8.6 ~ 35.0%Rye 8.4 ~ 34.7%
    Dimensions L172×W100×H75 mm
    Net weight  About500g
    Operating temp. range5~40°C
    Exception for dewing.
    PowerNo.3 “AA” batteries 1.5V×4 units
    Remove batteries when the meter is not in use.
    ●Notice for Moisture Reference Meter: since the design of TD-6 follows the calibration curve of grain in Japan, the user may obtain different moisture test results because of variables in region, ambient temperature, relative humidity and grain varieties. Please make calibration according to your national standard, such as oven-dry method (drying 5g of ground grain in an oven at 105°C for 5 hours) or make a tabulation by comparing the moisture reading on TD-6 with the standard of local authority to obtain accurate result. Therefore, the moisture content registered on TD-6 is for reference only.
    ●The specification and graph are for reference only. Actual specification shall be based on the Sales Confirmation which customers sign and delivered products.

    ItemVS-6
     > More info
    Application & Measuring range
    The test results are for reference.
    Grains with moisture content out of
    the measuring range is not applicable.     		Rapeseed 5.5 ~ 20.0%Tomato 7.8 ~ 20.0%Cucumber 7.2 ~ 20.0%
      Chilli 5.9 ~ 20.0%Eggplant 7.1 ~ 20.0%Radish 4.9 ~ 20.0%
    Dimensions L172×W100×H75 mm
    Net weight  About500g
    Operating temp. range5~40°C
    Exception for dewing.
    PowerNo.3 “AA” batteries 1.5V×4 units
    Remove batteries when the meter is not in use.
    ●Notice for Moisture Reference Meter: since the design of VS-6 follows the calibration curve of grain in Japan, the user may obtain different moisture test results because of variables in region, ambient temperature, relative humidity and grain varieties. Please make calibration according to your national standard, such as oven-dry method (drying 5g of ground grain in an oven at 105°C for 5 hours) or make a tabulation by comparing the moisture reading on VS-6 with the standard of local authority to obtain accurate result. Therefore, the moisture content registered on VS-6 is for reference only.
    ●The specification and graph are for reference only. Actual specification shall be based on the Sales Confirmation which customers sign and delivered products.

    ItemTA-B
     > More info
    Application & Measuring range
    The test results are for reference.
    Grains with moisture content out of
    the measuring range is not applicable.     		Soya, Corn 9 ~ 30%
    Dimensions L172×W100×H75 mm
    Net weight  About500g
    Operating temp. range5~40°C
    Exception for dewing.
    PowerNo.3 “AA” batteries 1.5V×4 units
    Remove batteries when the meter is not in use.
    ●Notice for Moisture Reference Meter: since the design of TA-B follows the calibration curve of grain in Japan, the user may obtain different moisture test results because of variables in region, ambient temperature, relative humidity and grain varieties. Please make calibration according to your national standard, such as oven-dry method (drying 5g of ground grain in an oven at 105°C for 5 hours) or make a tabulation by comparing the moisture reading on TA-B with the standard of local authority to obtain accurate result. Therefore, the moisture content registered on TA-B is for reference only.
    ●The specification and graph are for reference only. Actual specification shall be based on the Sales Confirmation which customers sign and delivered products.

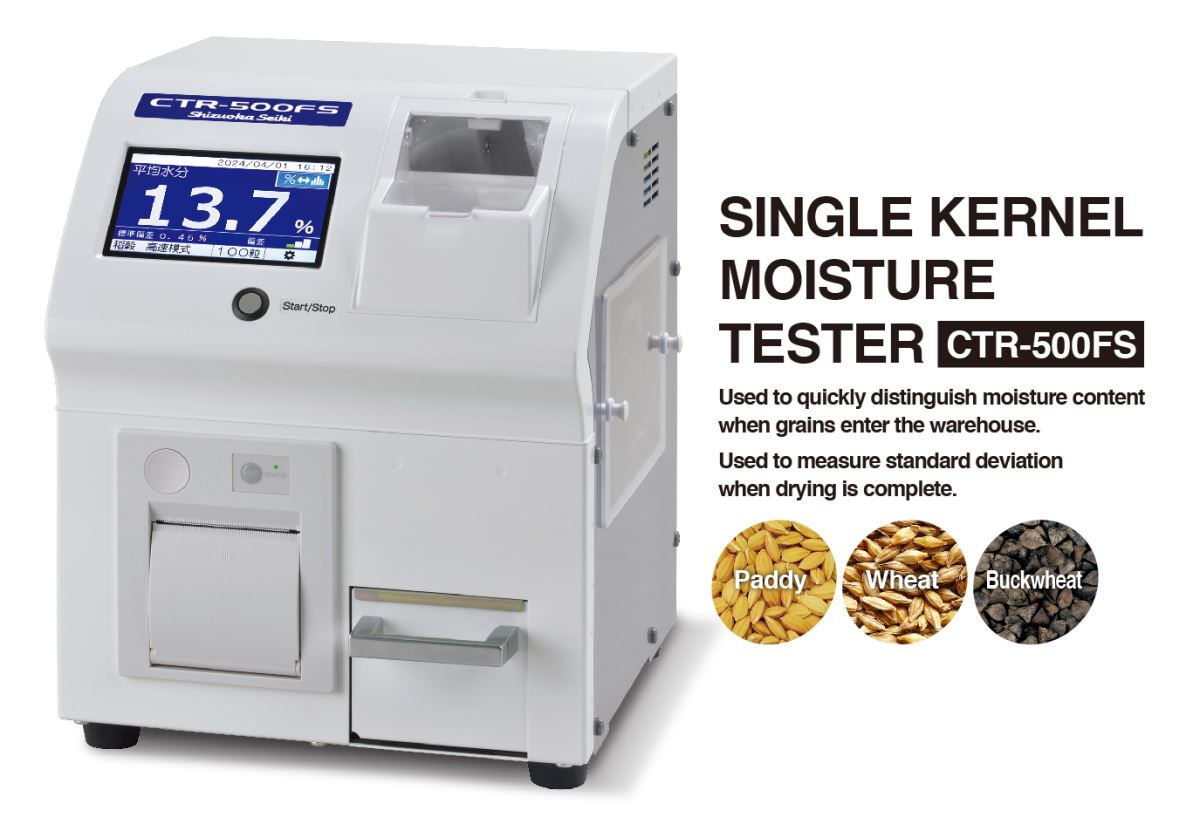

    13.Single Kernel Moisture Tester   > More info     Back > Legend
    Ability to confirm moisture distributionRice and wheat that are prone to poor drying can be identified at a glance.
    Added rice high-speed measurement modeCompared with the normal mode, the detection speed is doubled and the detection time is greatly shortened.
    Each grain is accurately measuredCompared with a manual moisture meter, it is not affected by high-moisture grains and can measure accurately.


    Specifications
    ItemCTR-500FS
    Kernel types / Measuring range
    The ambient temp. is 20℃
    *Produce of Japan
    #Indonesian long kernel, Chinese long kernel    		Brown rice*
    11.1~approx. 20%    		Rye*
    11.4~approx. 30%    		Standard
    10.0~approx. 45%
    White rice*
    11.4~approx. 20%    		Buckwheat*
    11.1~approx. 30%    		In drying paddy*
    11.0~approx. 40%
    Wheat*
    10.2~approx. 40%    		Long brown rice#
    10.2~approx. 20%    		Paddy*
    10.0~approx. 40%
    Barley*
    9.0~approx. 36%    		Long white rice#
    10.6~approx. 20%    		Long paddy#
    9.2~approx. 40%
    DimensionsW246×D293×H310mm  (Not including protrusions)
    Net weight  About11.2kg
    Selectable languageTraditional Chinese, English, Japanese, Hangeul, Simplified Chinese
    Print characterTraditional Chinese, English, Japanese
    ElectricityAC110V-120V  50/60Hz
    ●Notice to measurement: The moisture content will be different because of region, ambient temperature, relative humidity and grain types. Please make calibration according to the national standard. Such as oven-dry method: by putting 5g of ground grain in an oven, drying at 105°C for 5 hours or make tabulation table by comparing  the moisture content tested from the local Food Administration. Referring to the tabulation table to obtain the accurate grain moisture content.
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
    ●Some types of grain may have difficulty analyzing.
    ●Measuring range may differ by ambient tempe



    14.Rice Quality Scanner   > More info     Back > Legend
    Check 1000 kernels in 5 secondsFrom start to printing result in just 5 sec. Much faster than an adept staff.
    Dust-proof and highly durableLong life span thanks to fixed structure. The testing part is dust-proof.
    Simple repair without toolThe upper and front panels can be opened easily and the testing part is designed to simplify cleaning.


    Specifications
    ItemES-5
    GrainsES-5: Brown japonica rice
    ES-5 (Polished rice): Brown japonica rice, polished japonica rice
    Optional: Polished japonica rice, brown sake rice, brown glutinuous rice
    Main classificationHead rice, cracked kernel, others
    Sub classificationHead rice, immature, cracked kernel, broken, insect-damaged, dead kernel, discolored
    Fine classificationGreen mature, other head rice, chalky, green immature, white base, white belly, slim, curved, consistency, slighty rusty, other immature, sprouted, one horizontal crack, two horizontal cracks, abnormal kernels, rusty, broken, spotted, dead green, dead chalky, entirely discolored, partially discolored, red
    Scanning categoryDiscolored, dead kernel, cracked kernel, broken, chalky immature, head rice*
    DimensionsW281×D356×H545mm
    Net  weight Approx.11kg
    PowerAC100V±10%
    ●Display language of ES-5 is Japanese.
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
    *Chalky immature and head rice as reference during an agricultural inspection.



    15.Smart-agri Monitoring System   > More info     Back > Legend
    Easy to installSimply install SUNCUE Wifi module*,  download the APP and digitalize the agri-system.
    Real-time status displayIncrease management efficiency by using the APP to monitor dryer and furnace status in real-time.
    Error notificationGet notified via the APP for efficient, safe and smart agriculture.
    Monitor multiple facilitiesYou can monitor multiple drying centers, saving time and effort.
    Share with multiple usersAdd new users to share information for co-management.

    Specifications
    ItemSmart-agri Monitoring System
    Applicable modelGrain dryerSUPER series Electronic, PHS series, MD series, CPR series
    Husk furnaceSB series
    System compatibilityiOS 13.1 or later     Android 7.0 or later    #Stable 2.4GHz Wifi only
    # Requirement: install SUNCUE Wifi module, download the Smart-agri monitoring APP and use with Wifi 2.4GHz.
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.



    27.Bag Filter   > More info     Back > Legend
    Full automationFully automatic control technology with automatic ash cleaning control and foolproof design.
    High performanceDesigned exclusively for SUNCUE biomass furnace
    to reach full performance.
    High efficiencyThis efficiently collects dust particle and pollutant,
    making the exhaust clean and reducing pollution.


    Dimensions


    Specifications
    ItemBF-130
    Bag filter
    BF-130    		DimensionsL3,389×W3,209×H8,592mm
    Net weight  Approx.4,200kg
    Electricity3P, 220V/380V/415V/440V, 50/60Hz
    Power consumption kW0.95
    Control1. Overheat protection
    2. Overpressure alarm
    3. Auto-cleaning, auto ash discharge
    配合周邊Air compressing system11. Required air volume       720L/hr
    2. Required power Approx.  10HP
    3. Air tank                             600l
    Exhaust blower of biomass furnace20HP
    ●The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
    Contact
    Catalog
    Maintenance
    Q&A

    Product Remark

    *Only some peripheral equipments are listed here. Please contact a SUNCUE distributor for other equipments.
    TOP
