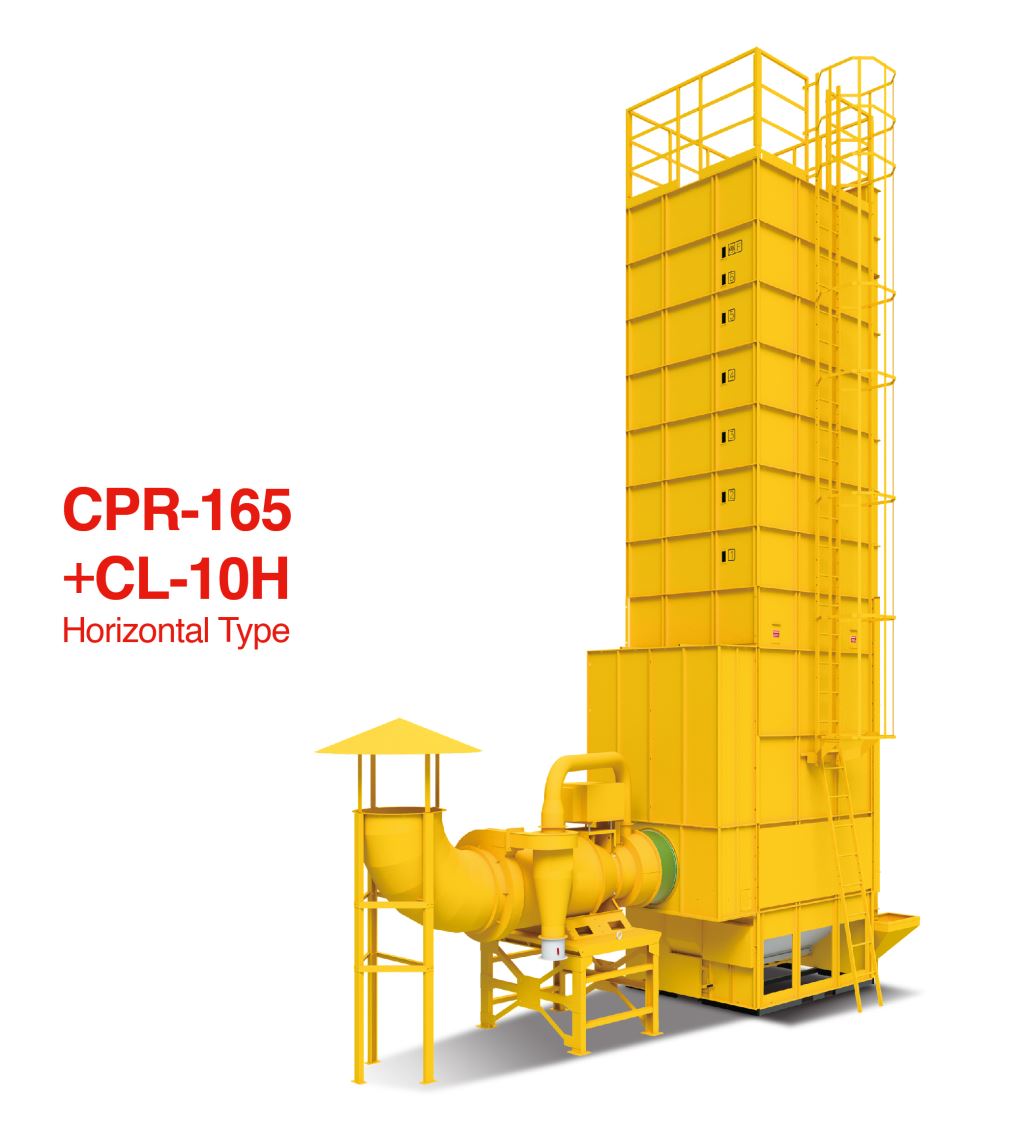

CPR Series
CPR-165 / CPR-390

CPR-165 Series / CPR-390 Series
• The low-temp., even and speedy drying minimizes broken grains and produces beautiful kernels.
• The entire dryer is designed to be strong and sturdy, making it suitable for heavy-duty.
• With foolproof design, users can dry high-quality grain from the 1^st, 100^th to 1000^th batch.
  Grain consistent in quality will be available to customers.
• Automatic moisture control prevents over-drying and weight loss.
• By using self-milled free rice husk, users no longer need to spend on diesel,
  natural gas or electricty as dryers' heat sources.


Multiple models with various fuel options availabl

Heat Source	CPR-165 Series	CPR-390 Series
Diesel	●	●
Gas	●	●
Husk	●	●
Biomass	●	─
Steam	●	─
Diesel & Husk Dual	─	●
Gas & Husk Dual	─	●
CL-10 Unit	1	2

Application

Specifications

Item			CPR-165 Low-temp	CPR-165 High-temp	CPR-390
Heat Source			Kerosene or Premium Diesel*
Combustion    Approx. liter/hr			8.8~23	17.5~27	27~54
Capacity          Approx. kg	Paddy 1 liter=560g		6,500~13,250	─	14,800~32,100
	Rapeseed 1 liter=680g		7,500~16,320	─	18,000~39,000
	Wheat 1 liter=680g
	Pulses, Corn 1 liter=690g		7,500~16,350		18,300~39,600
Dimension      L×W×Hmm (A)×(B)×(C)mm	Without CL-10		5,007×2,745×9,671		6,385×4,820×13,694
	With  CL-10	Horizontal Type	8,012×2,745×9,671		8,765×4,820×13,694
		Vertical Type	Please contact the sales department		Please contact the sales department
Net Weight      Approx. kg	Without CL-10		3,170		9,200
	With  CL-10	Horizontal Type	3,718		10,200
		Vertical Type	Please contact the sales department		Please contact the sales department
Power  Consumption kW	Without CL-10		6.45		13.8
	With CL-10		10.25		21.4
Function	Loading          Approx. mins		Paddy 66 Rapeseed/Pulses 60	Pulses/Corn 75	Paddy 56 Rapeseed/Pulses 67
	Discharging Approx. mins		Paddy/Rapeseed/Pulses 65	Pulses/Corn 70	Paddy 51 Rapeseed/Pulses 60
	Drying Rate %/hr	Commercial Grains	0.5~1.2	Pulses/Corn 1.0~2.0	0.5~1.2
		Seed	Paddy/Wheat 0.2~1.0 Rapeseed 0.1~0.5	─	Paddy/Wheat 0.2~1.0 Rapeseed 0.1~0.5
Type			Gun type
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse, Flame sensor, Over heat sensor.

*Use high-quality kerosene or premium diesel only




Item			CPR-165G		CPR-390G
Heat Source			LPG	NG	LPG	NG
Max. Combustion      Approx.			25 kg/hr	27.3 m3/hr	49.8 kg/hr	54.5 m3/hr
Capacity          Approx. kg	Paddy 1 liter=560g		6,500~13,250		14,800~32,100
	Rapeseed 1 liter=680g		7,500~16,320		18,000~39,000
	Wheat 1 liter=680g
	Pulses, Corn 1 liter=690g		7,500~16,350		18,300~39,600
Dimension      L×W×Hmm (A)×(B)×(C)mm	Without CL-10		5,007×3,210×9,671		6,385×4,820×13,694
	With CL-10	Horizontal Type	8,012×3,210×9,671		8,765×4,820×13,694
		Vertical Type	Please contact the sales department		Please contact the sales department
Net Weight      Approx. kg	Without CL-10		3,170		9,200
	With CL-10	Horizontal Type	3,718		10,200
		Vertical Type	Please contact the sales department		Please contact the sales department
Power Consumption kW	Without CL-10		6.6		14.2
	With CL-10		10.4		21.8
Function	Loading Approx. mins		Paddy 66 Rapeseed/Pulses 60		Paddy 56 Rapeseed/Pulses 67
	Discharging Approx. mins		Paddy/Rapeseed/Pulses 65		Paddy 51 Rapeseed/Pulses 60
	Drying Rate    %/hr	Commercial Grains	Paddy/Wheat/Rapeseed 0.5~1.2 Pulses/Corn 1.0~2.0		0.5~1.2
		Seed	Paddy/Wheat 0.2~1.0 Rapeseed 0.1~0.5		Paddy/Wheat 0.2~1.0 Rapeseed 0.1~0.5
Type			Gun type
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse, Flame sensor, Over heat sensor.



Item			CPR-165B	CPR-390B
Heat Source			SUNCUE Biomass Furnace BB-18, Rice Husk Furnace SB	SUNCUE Rice Husk Furnace SB
Capacity          Approx. kg	Paddy 1 liter=560g		6,500~13,250	14,800~32,100
	Rapeseed 1 liter=680g		7,500~16,320	18,000~39,000
	Wheat 1 liter=680g
	Pulses, Corn 1 liter=690g		7,500~16,350	18,300~39,600
Dimension      L×W×Hmm (A)×(B)×(C)mm	Without CL-10		5,565×2,675×9,671	7,990×4,820×13,694
	With CL-10	Horizontal Type	8,570×2,675×9,671	10,370×4,820×13,694
		Vertical Type	Please contact the sales department	Please contact the sales department
Net Weight      Approx. kg	Without CL-10		3,420	10,000
	With CL-10	Horizontal Type	3,968	11,000
		Vertical ype	Please contact the sales department	Please contact the sales department
Required Thermal Energy Per Unit  Approx. Kcal/hr	Paddy, Rapeseed, Wheat		36,000~145,000 Ambient Temp. +10~40°C	83,000~330,000 Ambient Temp. +10~40°C
	Pulses, Corn		36,000~235,000 Ambient Temp. +10~65°C	560,000 Ambient Temp. +65°C
Power Consumption kW	Without CL-10		7.7	16.84
	With CL-10		11.5	24.44
Function	Loading Approx. mins		Paddy 66 Rapeseed/Pulses 60	Paddy 56‧Rapeseed 67
	Discharging Approx. mins		Paddy/Rapeseed/Pulses 65	Paddy 51‧Rapeseed 60
	Drying Rate    %/hr	Commercial Grains	Paddy/Wheat/Rapeseed 0.5~1.2 Pulses/Corn 1.0~2.0	0.5~1.2
		Seed	Paddy/Wheat 0.2~1.0 Rapeseed 0.1~0.5	Paddy/Wheat 0.2~1.0 Rapeseed 0.1~0.5
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch,   Full load buzzer, Timer, Control fuse.	Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse, Rotation sensor.

Item			CPR-165S-7	CPR-165S-12
Heat Source			Steam
Capacity          Approx. kg	Paddy             1 liter=560g		6,500~13,250
	Rapeseed       1 liter=680g		7,500~16,320
	Wheat             1 liter=680g
	Pulses, Corn  1 liter=690g		7,500~16,350
Dimension      L×W×Hmm (A)×(B)×(C)mm	Without CL-10		4,820×2,890×9,671	5,160×2,890×9,671
	With CL-10	Horizontal Type	7,825×2,890×9,671	8,165×2,890×9,671
		Vertical Type	Please contact the sales department	Please contact the sales department
Net Weight      Approx. kg	Without CL-10		3,520	3,620
	With CL-10	Horizontal Type	4,068	4,168
		Vertical Type	Please contact the sales department	Please contact the sales department
Applicable Grains			Paddy/Rapeseed Wheat	Paddy/Rapeseed Wheat/Pulses Corn
Temperature  Increase Range      Ambient Temp Approx.			+15~50°C	+15~63°C
Boiler Capacity    Approx. ton/hr			0.6	0.8
Boiler Pressure    Approx. kg/cm²			7
Power Consumption kW	Without CL-10		6.2
	With CL-10		10
Function	Loading          Approx. mins		Paddy 66 Rapeseed/Pulses 60
	Discharging   Approx. mins		Paddy/Rapeseed/Pulses 65
	Drying Rate    %/hr	Commercial Grains	Paddy/Wheat/Rapeseed 0.5~1.2 Pulses/Corn 1.0~2.0
		Seed	Paddy/Wheat 0.2~1.0 Rapeseed 0.1~0.5
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay,  Air pressure switch,   Full load buzzer, Timer,  Control fuse.

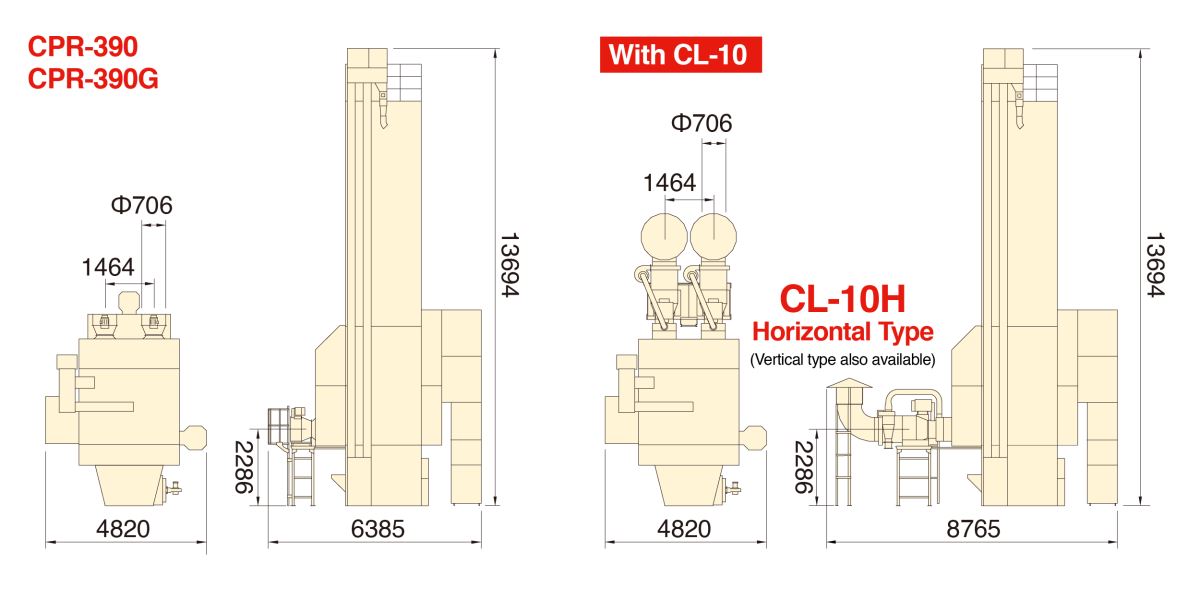

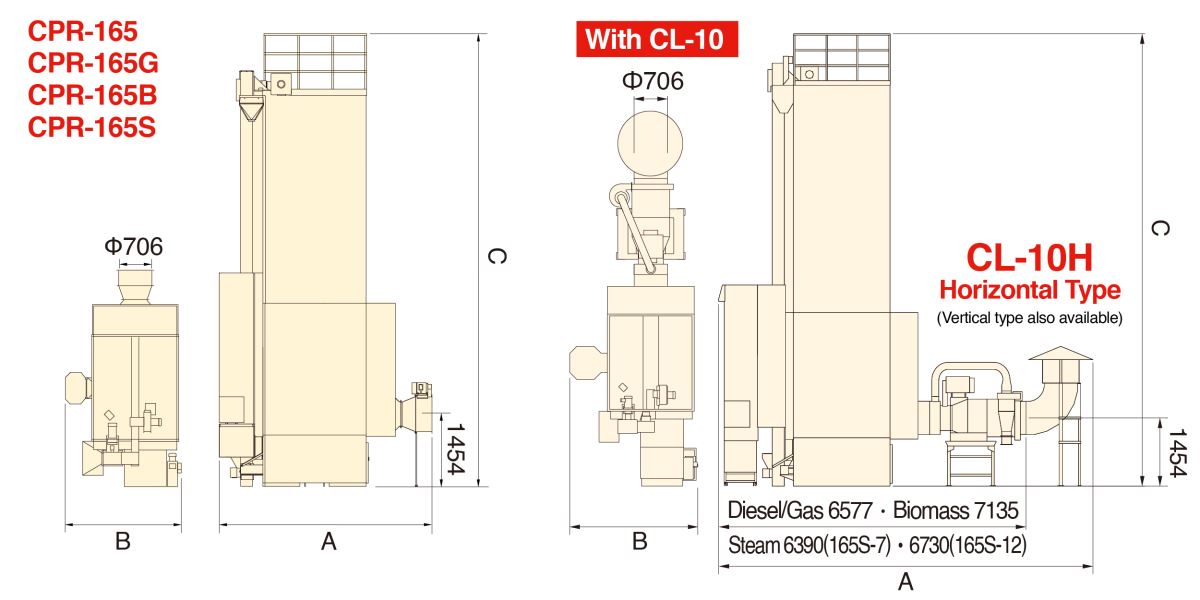

Dimensions  Unit mm








◆Above numbers and drying rate are derived from reducing moisture in paddy from 26% to 15%, wheat/corn from 30% to 12.5% ─ for reference only. Actual results vary among different ambient temperature, relative humidity, grain varieties, hot air temperature, moisture content before and after drying.
◆Please apply low hot air temperature for drying paddy to prevent high breakage rate.
◆Gas pipe lines have to be built by certified local professionals. NEVER do it by yourself.
◆The required thermal energy is for reference only. Actual data will differ among grain variety, impurity rate, and drying condition.
◆The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
◆The specifications of burner shown above are Japanese standard (Thermal energy: NG 11,000 Kcal/m³; LPG 12,000 Kcal/kg). Please consult with SUNCUE for burner with CE standard.
◆The density, composition and pressure of natural gas vary at different locations, thus thermal energy per m³ also varies. Ex: 8,900Kcal/m³ in Taiwan, 11,000Kcal/m³ in Japan, 8,400Kcal/m³ in Sichuan province of China.
◆Only use kerosene or premium diesel or diesel conformed to national standards. Please choose good quality diesel that can completely vaporize according to ambient temperature.
◆Boiler is a dangerous device. It should be installed in a boiler house and operated by professionally-trained personnel with official license by laws. The operation must obey local government regulations.
◆Different platform, rain hood, exhaust chamber, exhaust pipe, stand, balustrade and other accessories are required for each dryer and CL-10 model.
◆The user shall prepare dust collecting bags when using CL-10 without a central dust collecting system.
