SUPER Series

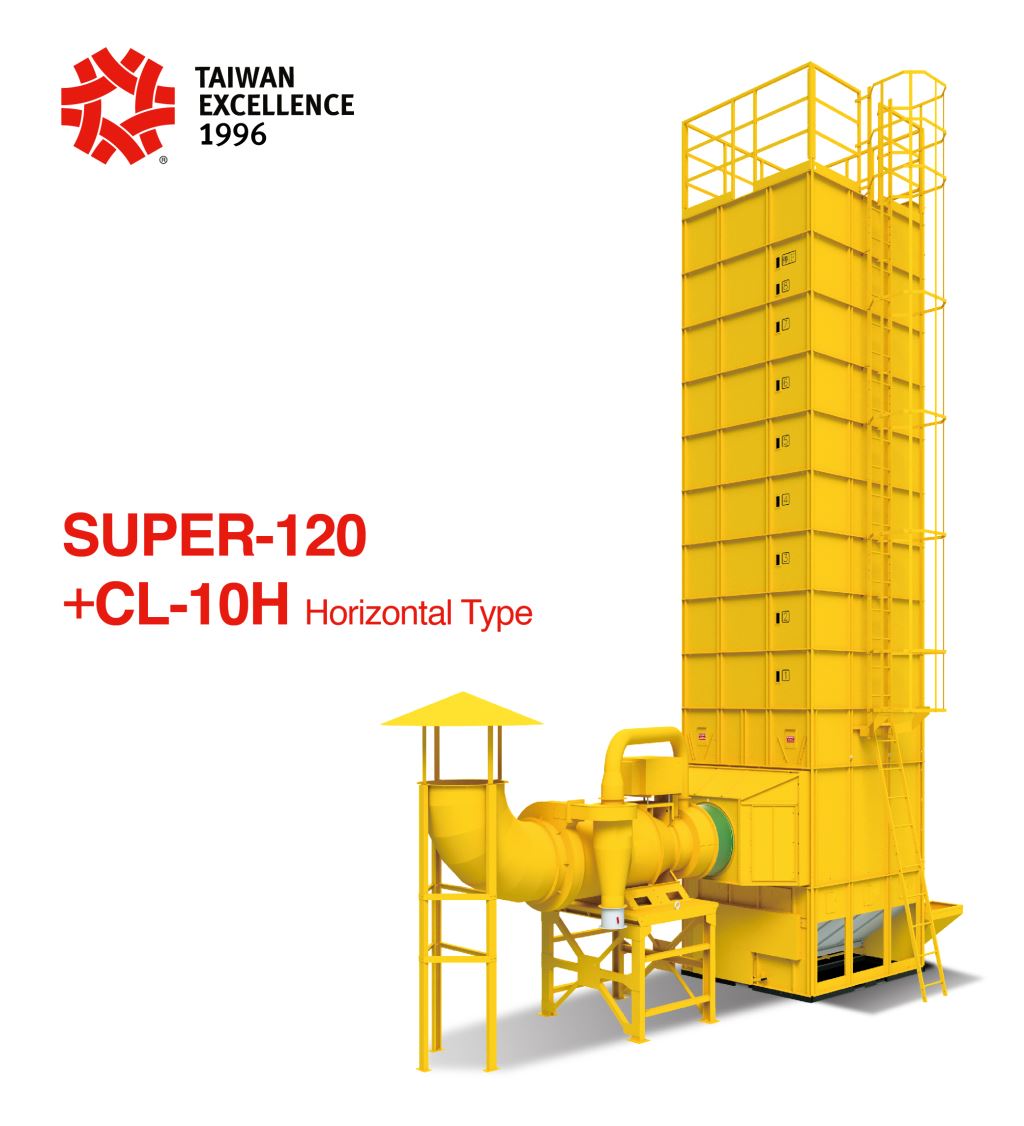

SUPER-120

SUPER-120 Series
• The low-temp., even and speedy drying minimizes broken rice, raises milling rate and produces beautiful rice.
• The entire dryer is designed to be strong and sturdy, making it suitable for heavy-duty.
• With foolproof design, users can produce high-quality rice from the 1^st, 100^th to 1000^th batch.
   Small-package rice consistent in quality will be available to customers.
• Automatic moisture control prevents over-drying and weight loss.
• By using self-milled free rice husk, users no longer need to spend on diesel, natural gas or electricty as dryers' heat sources.


Multiple models with various fuel options availabl

Heat Source	SUPER-120 Series
Diesel	●
Gas	●
Biomass	●
Diesel & Husk Dual	●
Gas & Husk Dual	●
Steam	●

Application
Specifications

Item			SUPER-120
Heat Source			Kerosene or Premium Diesel*
Type			Gun type
Combustion     Approx. liter/hr			6.7~14.5
Capacity        Approx. kg	Paddy     1 liter=560g		2,800~12,000
	Wheat     1 liter=680g		3,400~14,550
	Corn, Animal Feed    1 liter=690g		3,450~14,760
Dimension      L(A)×W(B)×H(C)mm	Without CL-10		3,609×2,660×9,602
	With CL-10	Horizontal Type	7,054×2,660×9,602
		Vertical  Type	Please contact the sales department
Net Weight      Approx. kg	Without CL-10		2,290
	With CL-10	Horizontal Type	2,887
		Vertical  Type	Please contact the sales department
Power Consumption   kW	Without CL-10		6.3
	With CL-10		10.2
Function Paddy	Loading          Approx. mins		60
	Discharging   Approx. mins		58
	Drying Rate    %/hr		0.5~1.5
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Flame sensor, Control fuse, Abnormal combustion sensor

*Use high-quality kerosene or premium diesel only

Item			SUPER-120B
Heat Source			SUNCUE Biomass Furnace BB-18,  Rice Husk Furnace SB-40 / SB-80 / SB-130
Capacity        Approx. kg	Paddy     1 liter=560g		2,800~12,000
	Wheat     1 liter=680g		3,400~14,550
	Corn, Animal Feed    1 liter=690g		3,450~14,760
Dimension      L(A)×W(B)×H(C)mm	Without  CL-10		4,089×2,660×9,602
	With CL-10	Horizontal Type	7,534×2,660×9,602
		Vertical Type	Please contact the sales department
Net Weight      Approx. kg	Without CL-10		2,460
	With CL-10	Horizontal Type	3,057
		Vertical Type	Please contact the sales department
Required Thermal Energy  Approx. per unit	Paddy ‧ Wheat    Approx. Kcal/hr		32,000~130,000 Ambient Temp. +10~40°C
	Corn ‧ Animal Feed    Approx. Kcal/hr		38,000~230,000 Ambient Temp. +10~60°C
Power Consumption   kW	Without CL-10		7.75
	With CL-10		11.55
Function Paddy	Loading          Approx. mins		60
	Discharging   Approx. mins		58
	Drying Rate    %/hr		0.5~1.5
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse



Item			SUPER-120G
Heat Source			LPG	NG
Max. Combustion      Approx.			16.6kg/hr≒233kW	18.2m3/hr≒233kW
Type			Gun type
Capacity        Approx. kg	Paddy     1 liter=560g		2,800~12,000
	Wheat     1 liter=680g		3,400~14,550
	Corn, Animal Feed    1 liter=690g		3,450~14,760
Dimension      L(A)×W(B)×H(C)mm	Without CL-10		3,685×3,250×9,602
	With CL-10	Horizontal Type	7,130×3,250×9,602
		Vertical  Type	Please contact the sales department
Net Weight      Approx. kg	Without CL-10		2,290
	With CL-10	Horizontal Type	2,887
		Vertical  Type	Please contact the sales department
Power Consumption   kW	Without CL-10		6.4
	With CL-10		10.2
Function Paddy	Loading          Approx. mins		60
	Discharging   Approx. mins		58
	Drying Rate    %/hr		0.5~1.5
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Flame sensor, Control fuse, Abnormal combustion sensor

Item			SUPER-120S
			7	12
Heat Source			Steam
Capacity        Approx. kg	Paddy     1 liter=560g		2,800~12,000
	Wheat     1 liter=680g		3,400~14,550
	Corn, Animal Feed    1 liter=690g		3,450~14,760
Dimension      L(A)×W(B)×H(C)mm	Without CL-10		3,971×2,660×9,602	4,321×2,660×9,602
	With CL-10	Horizontal Type	7,416×2,660×9,602	7,766×2,660×9,602
		Vertical  Type	Please contact the sales department
Net Weight      Approx. kg	Without CL-10		2,453	2,558
	With CL-10	Horizontal Type	3,050	3,155
		Vertical  Type	Please contact the sales department
Power Consumption   kW	Without CL-10		6.25
	With CL-10		10.05
Function Paddy	Loading          Approx. mins		60
	Discharging   Approx. mins		58
	Drying Rate    %/hr		0.5~1.5
Applicable Region			Regular	Cold, Frigid
Applicable Grains			Paddy, Wheat	Paddy, Wheat, Maize
Temp. Increase Range    Ambient Temp.			+26~50°C	+16~76°C
Boiler Capacity  Approx. ton/hr			0.6	0.8
Boiler Pressure   Approx.  kg/cm²			7
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay,  Air pressure switch,   Full load buzzer, Timer,  Control fuse

Dimensions  Unit mm








◆ Above numbers and drying rate are derived from reducing moisture in paddy from 26% to 15%, wheat/corn from 30% to 12.5% ─ for reference only. Actual results vary among different ambient temperature, relative humidity, grain varieties, hot air temperature, moisture content before and after drying.
◆ Please apply low hot air temperature for drying paddy to prevent high breakage rate.
◆ The specifications of burner shown above are Japanese standard (Thermal energy: NG 11,000 Kcal/m³; LPG 12,000 Kcal/kg).Please consult with SUNCUE for burner with CE standard.
◆ The user shall prepare dust collecting bags when using CL-10 without a central dust collecting system.
◆ Different platform, rain hood, exhaust chamber, exhaust pipe, stand, balustrade and other accessories are required for each dryer and CL-10 model.
◆ Gas pipe lines have to be built by certified local professionals. NEVER do it by yourself.
◆ The required thermal energy is for reference only. Actual data will differ among grain variety, impurity rate, and drying condition.
◆ Diesel/Rice Husk & Gas/Rice Husk Duel-type are made to order.
◆ The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
◆ The density, composition and pressure of natural gas vary at different locations, thus thermal energy per m³ also varies. Ex: 8,900Kcal/m³ in Taiwan, 11,000Kcal/m³ in Japan, 8,400Kcal/m³ in Sichuan province of China.
